HEBERN ELECTRIC CODE MACHINE

This version of the Hebern machine dispensed with the Remington typewriter. Instead, it used a light indicator panel. The example pictured here is believed to be the prototype to patent 1683072 (Electric Code Machine E. H. Hebern, September  4, 1928. It contains  a keyboard with lamps and has multiple rotors).
Above and below - Top views of machine. (Photos by James Bove )


Bottom View - Keyboard is at the bottom of the photo. (Photo by James Bove )

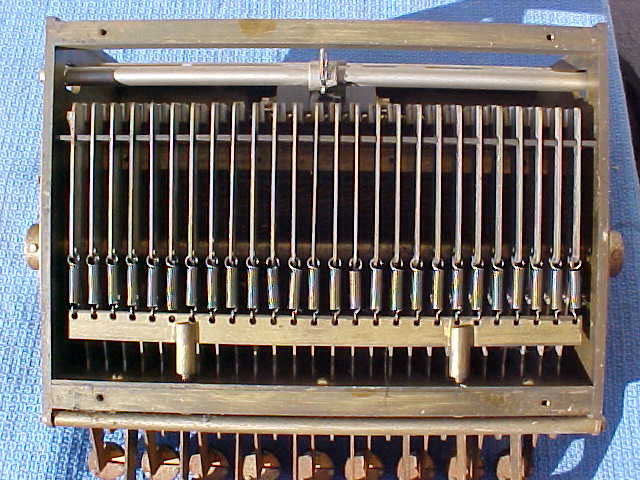

Rear View - With machine upside down. (Photo by James Bove )
This is the multi rotor machine described by patent  1683072. (Image courtesy United States Patent Office).



Contributors and Credits:

1) James Bove <livstm(at)sbcglobal.net>
2) Brooke Clarke <brooke(at)pacific.net>
3) US Patent 1683072
