KG-189

KG-189 HIGH SPEED STRATEGIC TRUNK ENCRYPTOR

The KG-189 is the next generation of trunk encryptors designed to be compatible with Synchronous Optical Network (SONET) standard interfaces. It provides optical transport at both the RED and BLACK interfaces to communications systems. The KG-189 program currently consists of models supporting three standard SONET data rates:


OC-3 model operates at 155 Mb/sec
OC-12 model operates at 622 Mb/sec
OC-48 data rate of 2.5 Gb/sec
The KG-189 is designed as a single chassis with interchangeable cards allowing the KG-189 to upgrade from OC-3 to OC-12 with minimal cost and no impact on installation. The KG-189 supports benign fill capability, traditional key, and remote loading of FIREFLY vectors. It is approved for use at all classification levels.

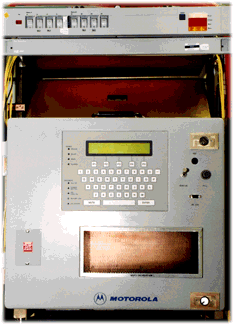

Photo courtesy of U.S.N.

CHARACTERISTICS

SIZE: rack mount configuration -  21.3"W x 23"D x 27"H

WEIGHT: 70 lbs

Operating Temperature  0 to +40C
(Storage: -10 to +70oC)

POWER REQUIREMENTS:

-48Vdc + 10%, Prime and Backup power inputs
265 Watts (185 Watts for non-redundant)
9V Alkaline Backup Battery

Mean Time for System Restoral (MTSR): 30 minutes, or less Operational Availability of 99.99975%

Manufacturer: Motorola


Unit Price -  $65,000 (Jan 2001)

Source: US Navy COMSEC web page. https://infosec.navy.mil/TEST/PRODUCTS/CRYPTO
