UGM-11 Test Set

The Wavetek Model 404 Signal Generator (military designation of UGM- 11) was a commercial data transmission test set which could also simulate a crypto signal for various types of crypto devices. A selection of different baud rates was available and distortion could also be introduced into the signal.

Right Side View

Left Side View - Note the Mode switch at the left.

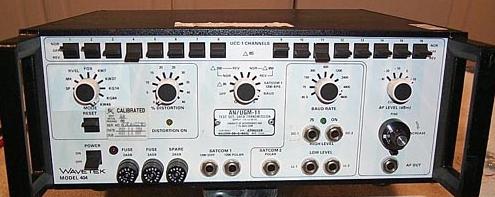

Full Front View
