XG54 and XG54G RECEIVER SERIES


SPECIFICATIONS

Types:  112-952  A-B-C-D-E and F.
Description:  Single fixed frequency, crystal controlled , rack mounted , superheterodyne receiver.
Frequency range: 1620 KHz to 18 MHz in one of six predefined bands.
Modes: CW, MCW and Voice
Sensitivity: 1 microvolt for an output of 0.5 watts at a signal to signal plus noise ratio of 6 db .
Dimensions: 19 in. W x 3.5 in. H x 14 in. D
Power Consumption: 115 VAC, 25-60 Hz ; 65 watts
Weight: 17 pounds
Packaging: 19 inch rack panel mounting
Colour: Marconi Light grey
Circa: 1948 to 1952 (from drawing dates)
Instruction Manual: #590


Looking for a photo
GENERAL

The XG54 receiver is a single channel, crystal controlled HF receiver for general purpose use such as airport control or the the shore terminal of a ship to shore service. It is designed  for rack mounting and its short panel height of 3.5 inches, allow a number of receivers to be stacked in a standard 19 inch rack. Each receiver has its own on-board 3 inch permanent magnet speaker but an external speaker can also be used.

For each of the six models, appropriate coil sets will be factory installed depending on which variant the customer ordered.  The different models are summarized in the table below:

VARIANT FREQUENCY RANGE RECEIVER PART No. 'G' SERIES PART No.
A 1650 to 2500 KHz XG54A - #112-952A XG54GA - #112-952GA
B 2500 to 3750 KHz XG54B - #112-952B XG54GB - #112-952GB
C 3750 to 5600  KHz XG54C - #112-952C XG54GC - #112-952GC
D 5600 to 8400 KHz XG54D - #112-952D XG54GD - #112-952GD
E 8400 to 12,500 KHz XG54E - #112-952E XG54GE - #112-952GE
F 12,500 to 18, 000 kHz XG54F - #112-952F XG54GF - #112-952GF
With appropriate wiring attached to the Output Plug, the following receiver functions can be remotely controlled.

a) Squelch off/on.
b) Squelch level can be varied with the use of an external rheostat.
c) Muting
d) Control of the transmitter associated with the receiver.
e) Switching from CW to MCW modes.

'G' SERIES

The XG54G series receivers incorporate certain modifications which enable them, when used in conjunction with remote control units such as the AG15A, to provide remote control functions not previously found in XG54 receivers.

These functions are:
a) Remote control of the BFO note
b) Remote control of RF gain.

The XG54G series also incorporates an Audio Limiter which is intended to limit the signal level fed to the line when used as a remotely operated CW receiver. A front panel switch is used to turn off the limiter when the receiver is used on MCW reception or local CW reception. In order to accomplish these additional functions, an additional tube , V13, has been added to the receiver  besides certain changes to the screen resistor network associated with the RF and IF stages.

CONTROLS

The following controls are provided: Power Off/On Switch, Volume Control, Squelch Control, RF Gain Control, CW/MCW Switch, BFO Note Control. As well, a pilot light fuse holder and 3 inch loudspeaker are mounted on the front panel .

TUBE LINEUP

Signal Frequency Amplifier       (V1)   6BA6
Converter                                 (V2)       6BE6
I.F. Amplifiers               (V4 and V5)     6BA6
Detector                                    (V6)      6AQ6
AVC Amplifier                           (V7)      6AQ6
Squelch Control  and AF Amp (V10)    6SL7
AF Power Amplifier                 (V11)      6AK6
Bias Rectifier                            (V8)       6C4
Power Rectifier                         (V9)       6X4
Xtal Controlled Oscillator          (V3)     6C4
BFO Oscillator                          (V12)     6BJ6
Control Tube (G series only)   (V13)    6BH6


CRYSTAL FREQUENCY

For reception of frequencies lower than 2500 KHz, the crystal frequency is 455 kHz higher than the received signal. For frequencies between 2500 KHz and 8,000 kHz, the  crystal frequency is 455 kHz lower than the received signal. Above 8,000 KHz signal frequency, the crystals are used on their second harmonic and the crystal frequency will be such that twice the crystal frequency will be 455 KHz lower than the received signal .

MANUAL

A manual for the XG54 series is available at the BAMA web site.

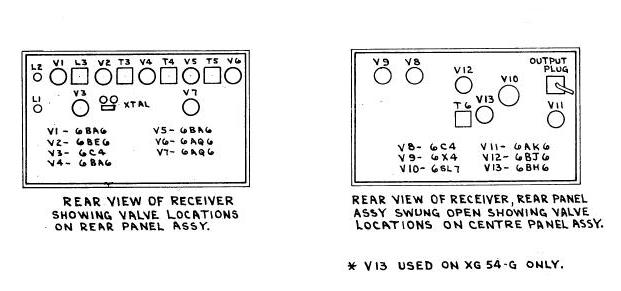

Chassis layout pictorial.  (Courtesy Canadian Marconi)


Contributors and Credits:

1) Manual for the XG54 series receivers compliments of Gerald Caouette, VE6NAP <ve6nap(at)ve6nap.com>
