CN 86 Seaway Marine Radiotelephone


SPECIFICATIONS


Model: CN-86
Common Name: SEAWAY
Power: 60 watts into a 10 ohm load
Mode: AM radiotelephone
Frequency range: 1.6 to 6 MHz
Frequency control: Crystal
Channels available: 10
Vintage: February 1960
Power: 32 VDC @ 14.5 A or 110 VDC @ 4.4A or 220 VDC @ 2.9A or
117 VAC 60 Hz @4.1 A
Dimensions: 22.75"H x 16.75"W x 11.75"D
Weight : 85 pounds
Number of transmitter  tubes: 8
Number of receiver tubes: 7

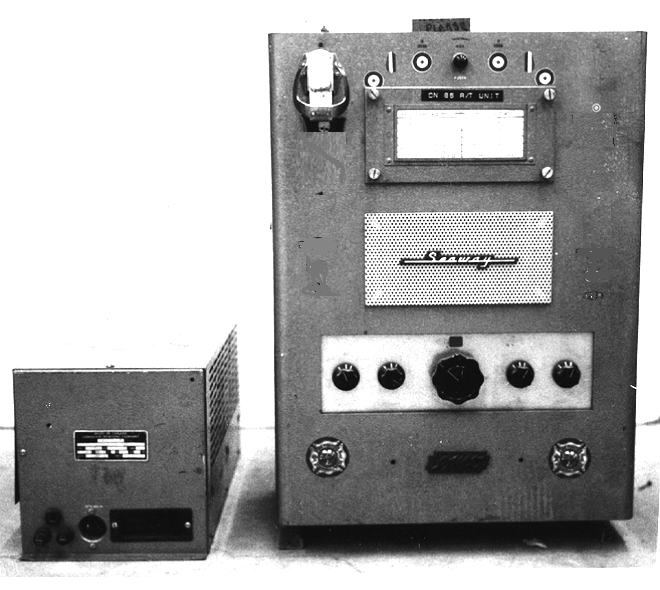

CN-86 with front covers on and external power supply.  This CN-86 is missing its handset which is normally cradled at the left top. The cabinet finish is green, the same shade as the enclosure of  the remote control box below.   (Photo courtesy Canada Science and Technology Museum, Ottawa)

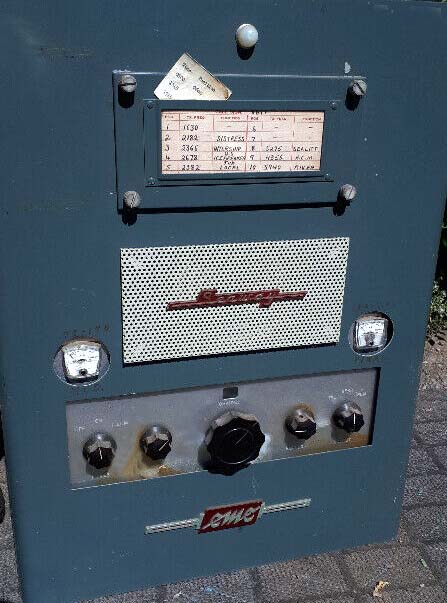

This version of the CN-86, painted blue, seems to be different than the unit in the b/w photo above. Can anyone explain the differences? Contact: jerry.proc@sympatico,ca (Photo via Kijiji,ca)

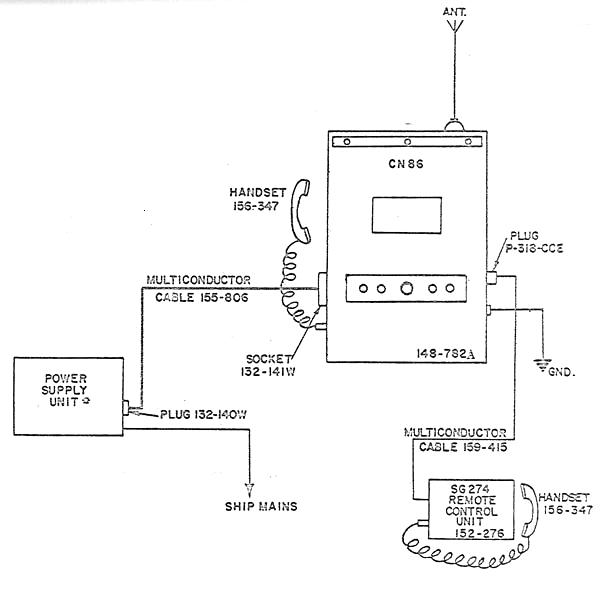

A typical shipborne installation. (Drawing courtesy Canadian Marconi)

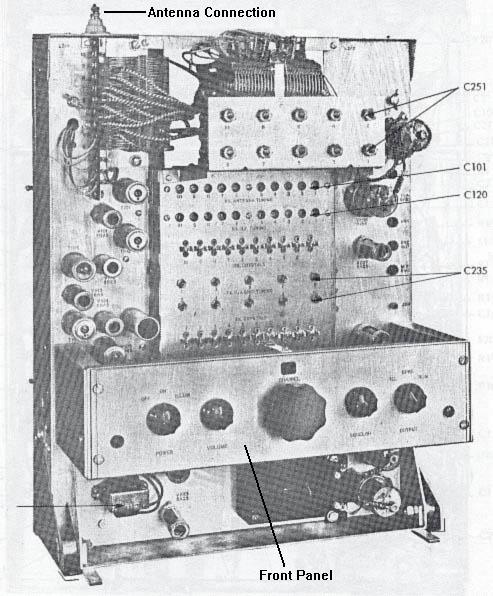

CN-86 front view with covers off.  (Drawing courtesy Canadian Marconi)


/cn86_sg274_remote1.jpg
CN-86 remote control  front view
CN-86 emote control internal view
CN-86 remote control side view. The remote control attaches to the transmitter via cable #159-415. It attaches from  the connector below the nameplate to a socket on the tight side of the main CN-86 unit.
CN-86 nameplate
All photos in this table via Ebay. Download image to enlarge

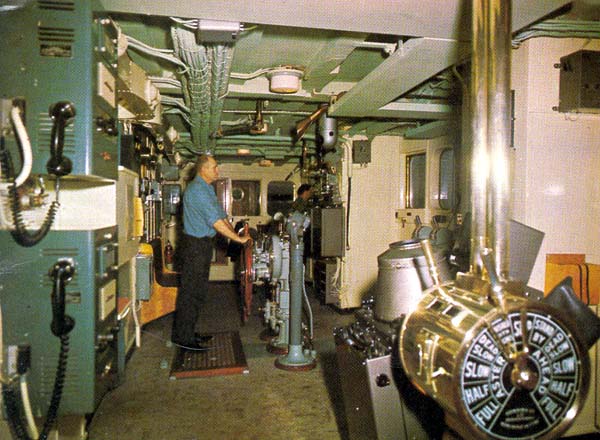

At the left are a pair of CN-86's in their native habitat - the bridge of a ship. Such was the scene aboard the icebreaker Camsell, radio call sign CGCW. One of the CN-86's was remoted  to the "Monkey Island"  navigating position, while the second unit was remoted to the Captain's cabin. The Camsell had just come back from a three month stint breaking ice for the Arctic resupply during the summer of 1968. The photo was staged for the magazine. (From the 1968 winter edition of Beautiful BC Magazine)


Contributors and Credits:

1) Canadian Marconi Company, Montreal. CN 86 Manual #131-841
2) Frank Statham <fstatham(at)telus.net>

Dec 11/19
