| Top view of chassis. |
CANADIAN MARCONI HOME ENTERTAINMENT - MODEL 134 and 135 RADIOS
Type : 6 tube , AC operated superheterodyne receiver with 4 push button station selector and magic eye tube .
Frequency range: (The dial markings and the specs in the service manual do not quite agree)
538 to 1720 KHz
5720 TO 19500 KhZTube lineup: 6A8. 6K7, 6Q7, 6F6, 5Y4, 6G5
Audio power: 1,7 watts
Speaker:Model 134 - 5.5 inch permanent magnet.
Model 135 - 12 inch permanent magnet.Input power:
115 VAC 60 HZ 54 watts
115 VAC 25 Hz 57 wattsVintage 1938
|
| Top view of chassis. |
MODEL !34
 |
| Model 134 front view. (Photo by Kevin Christopher) |
 |

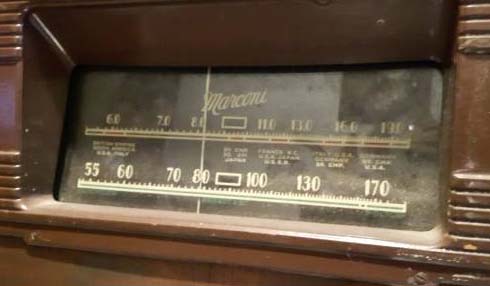

| Model 134 dial detail. (Via Craig's list) |
 |
| Model 134 - top view of chassis (Photo by Kevin Christopher) |
 |
| Model 134 rear view |
 |
| Model 134 nameplate |
| Model 134 photos via Kijiji |
 |
| The four pushbutton
tabs, bear the station identifiers of CFCY, CBR, CHNS, and WCAU. Out of
curiosity, it would he fun to find out where these stations were located.
Here are the results:
CFCY – Was 960 AM starting in 1925. In 1931, it moved to 580 AM, and then to its final AM frequency of 630 in 1933. Moved to 95.1 FM in 2006. Broadcasting from PEI. CBR – 1010 AM as of 1964 . Broadcasting from Calgary . Wikipedia incorrectly list this as a clear channel station. It is not. CFRB 1010 in Toronto is on that 1010 frequency and has been since 1927. It is correctly listed as a clear channel station in Wikipedia,. CHNS – Halifax – Was 930 AM . Converted to 89.9 FM WCAU – 1050 Philadelphia. Converted to WCAU-TV. CBR and WCAU seem to be geographically out of place when compared to CHNS and CFCY. No accurate conclusion could be derived from this exercise. Click on image to enlarge. (Photo by Kevin Christopher) |
MODEL 135 PHOTOS
 |
| Model 135 front view. |
 |

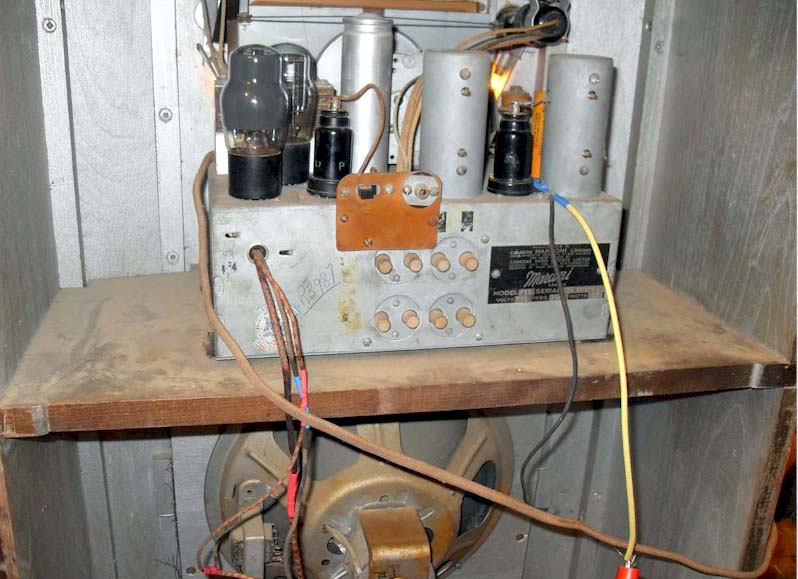

| Model 135 rear view, |
| Model 135 photos in this table by Kevin Christopher |
Contributors or References:1) Canadian Marconi Service Manual Vol 1.
2) Lewis Bodkin [05bodkin555@gmail.com]
Mar 30/20
