TR-200-RS Transmitter


SPECIFICATIONS

Type: TR-200-RS   No. 84038
Frequency Range: 1.6 to 6 MHz (185 to 50 metres)
Modes: CW/AM
Power output: 50 or 200 watts
Frequency control: 3 crystal controlled channels.
Microphone: Crystal
Dimensions: 34 inches H x 19.5 inches W x 17 inches D
Primary power: 115VAC 60 Hz.
Circa: July 1939
Manual: #302

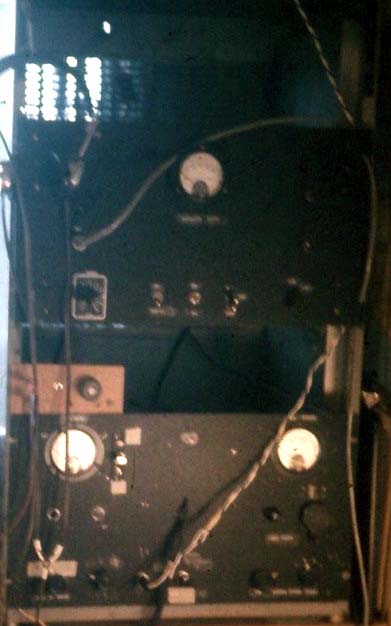

 TR200 photo provided by Ted Thorpe  VE3HPL

DOCUMENTATION
Provided by Ted Thorpe, VE3HPL

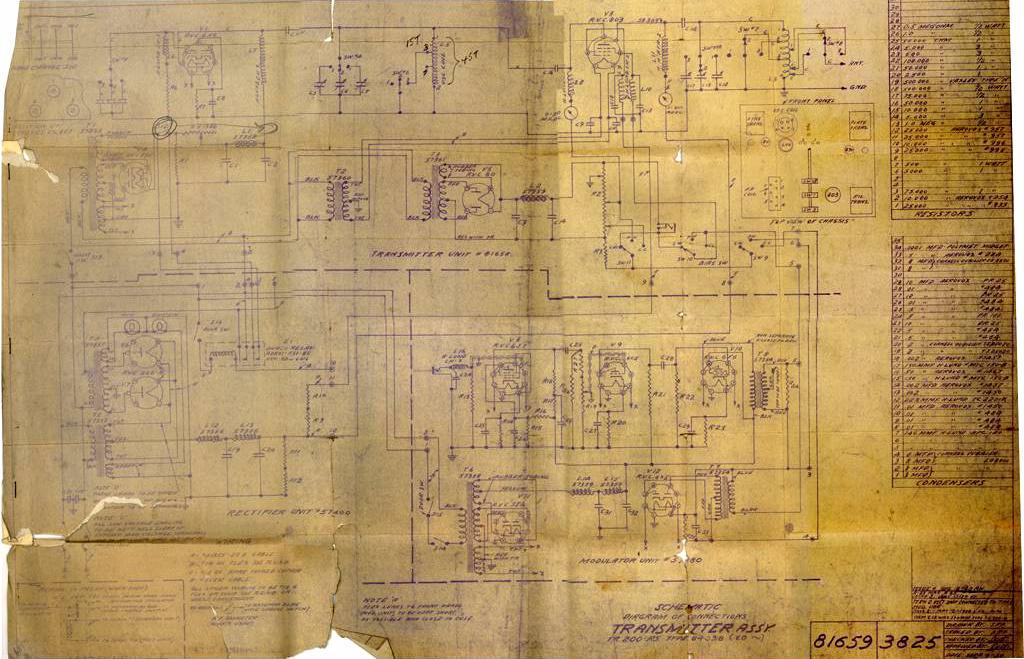

TR-200 schematic
TR-200 Operating and Installation Manual.
A full size TR200  schematic  (27 mb in size) is available from the webmaster : jerry.proc@sympatico.ca


/tr200_chassis_view.jpg

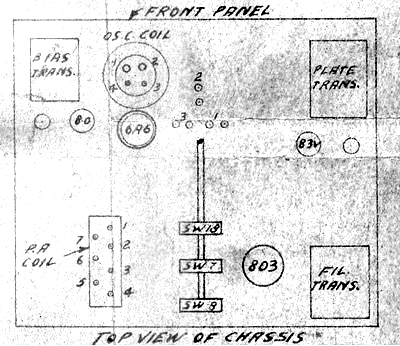

TR200 top view of chassis.
