DECCA Mk 19 RECEIVER PHOTOS
Internal  photos and captioning for the Decca  Mk19 receiver were provided by  Leon Heinkelein
decca_mk19_fpanel1_5939.jpg decca_mk19_receiver_withdrawn_from_case_5859.jpg

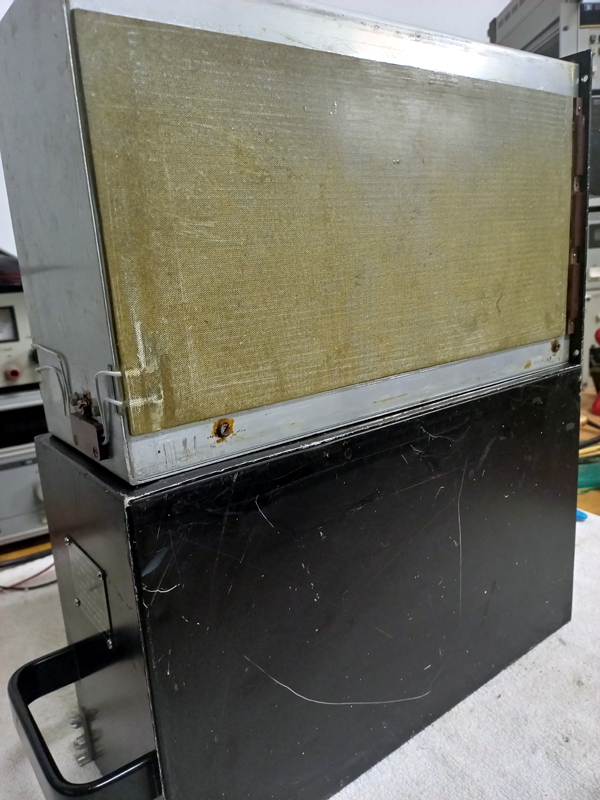

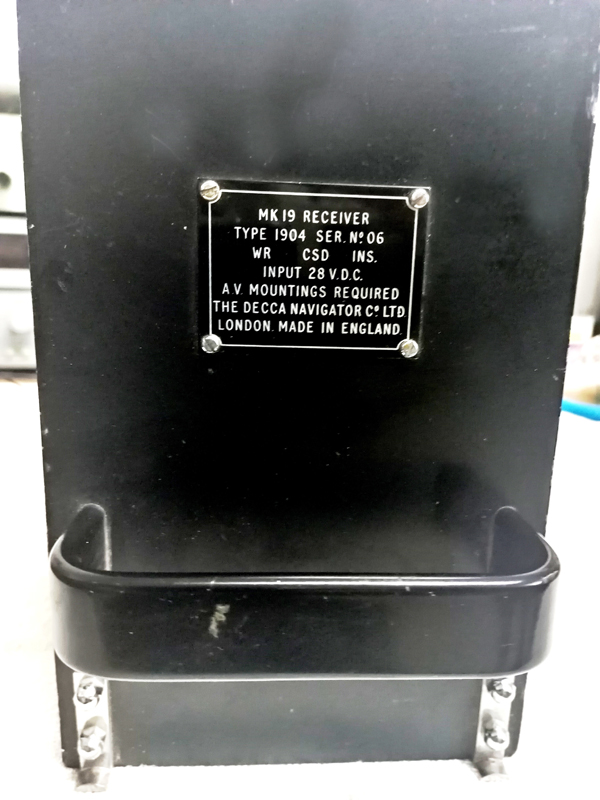

#095939 - View of front panel..  #095859 - View of the receiver when withdrawn from its outer case. It also shows the heating panel used to stabilize the electronics.
decca_mk19_rearview 1_2726.jpg decca_mk19_rearview2_3055.jpg

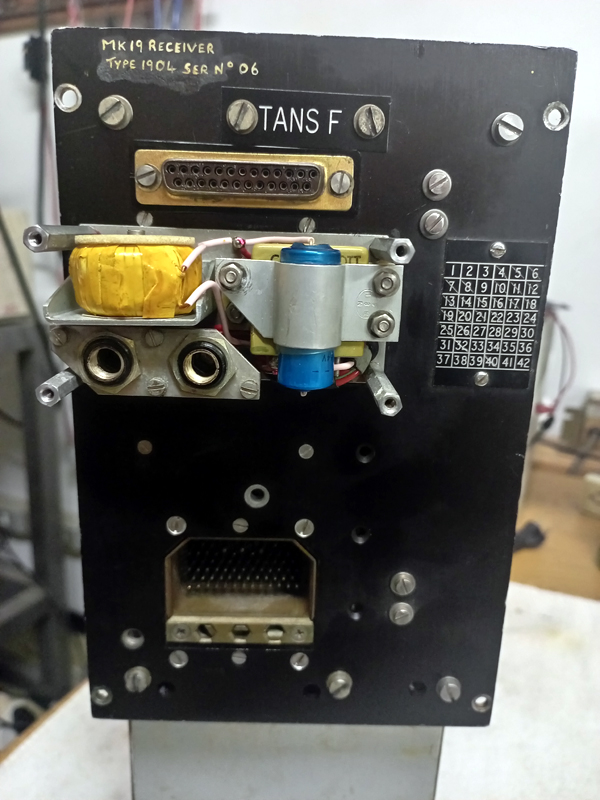

#092726 - view of the rear panel showing power input module

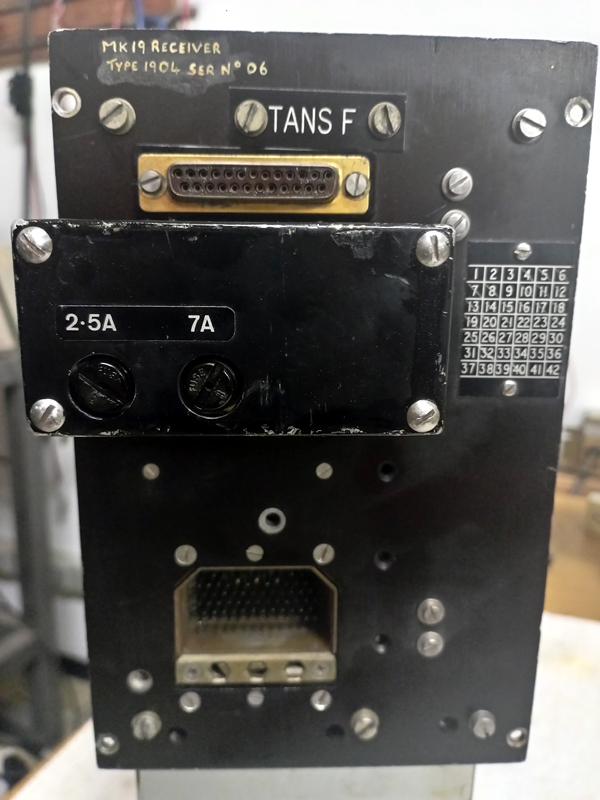

 with cover removed. The input filter and power switching relay are visible.		 #093055 - View of the rear panel with power in/out module in place. Note also the TANS-F connector for connection of a Tactical Air Navigation System computer, which is again DIFFERENT from the 1910 computer.
decca_Mk19_right_side_top_2253.jpg decca_mk19_left_side_middle8_1330.jp

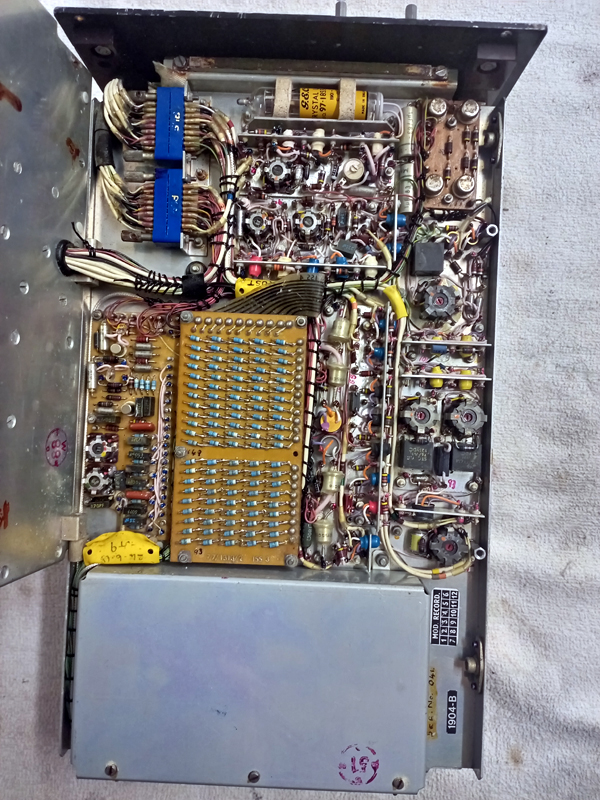

#092253 - Right hand side, topmost electronics tray installed.  #091330 - Left hand side, middle tray installed; top tray hinged out of the way. Note the crystal in glass envelope towards middle top of the picture.
decca_mk19_minute_detail_1337.jpg /decca_mk19_left_side)hinged_down_91412.jpg

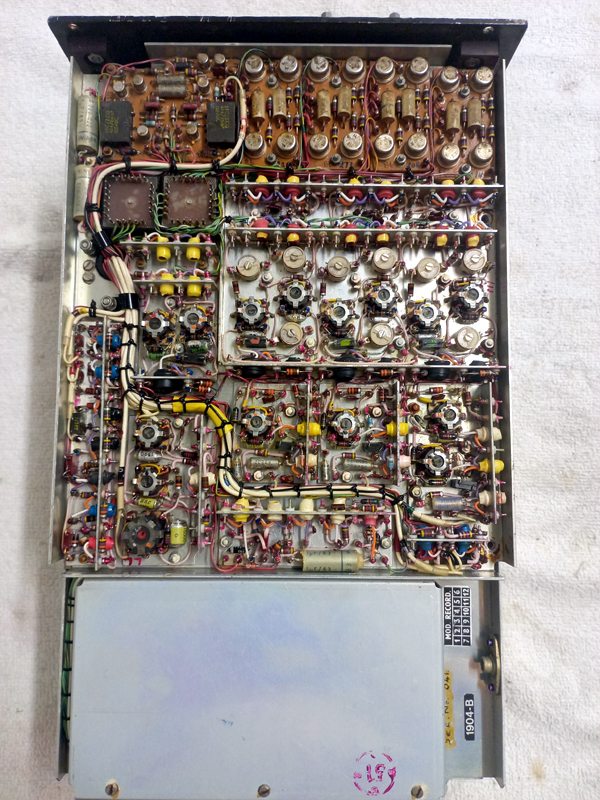

#091337 - Closeup of the above assembly, showing minute detail and  intricacy of construction. #091412 - Left hand side, with top tray hinged down and in place.
decca_mk19_right side all mods removed_0414.jpg /decca_mk19_right_side_locked_osc_1756.jpg

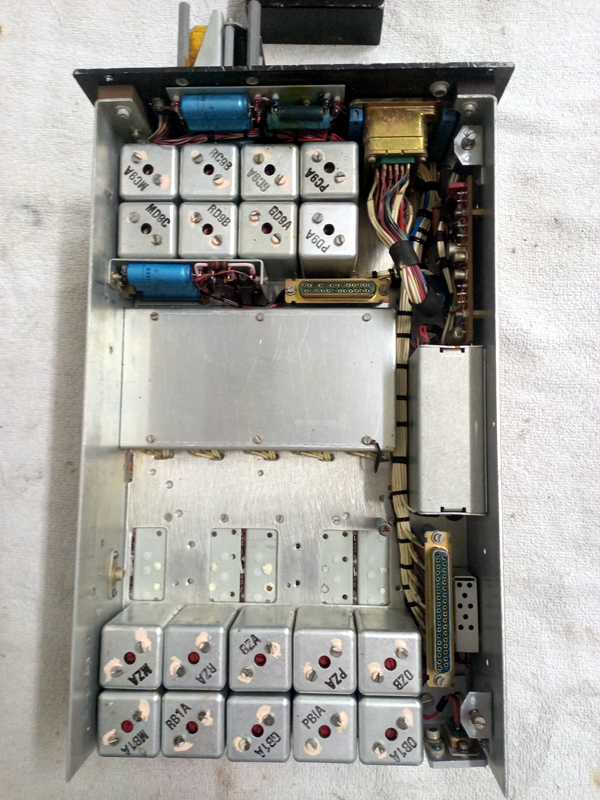

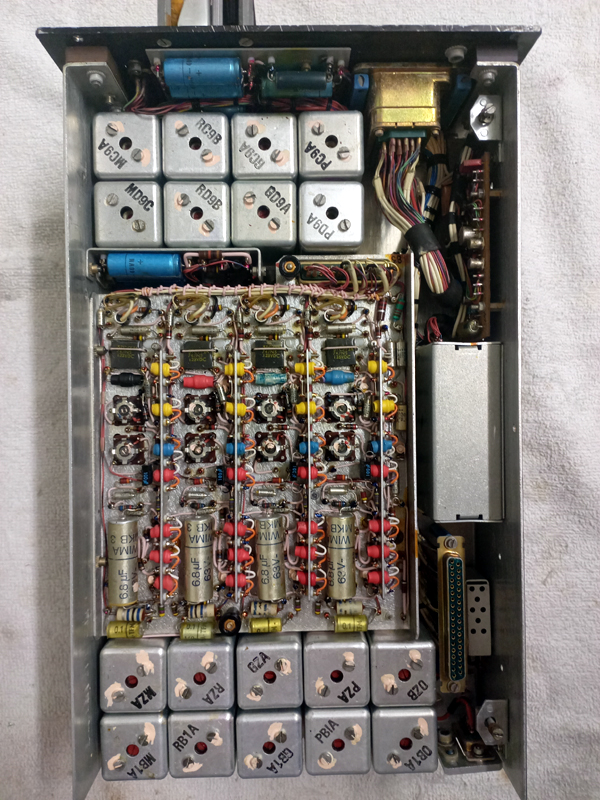

#081414 - Right side view, with all modules removed. RF transformers for Master, Red, Green, Purple and Orange visible. #091756 - Right side view with locked oscillator tray in place.
decca_mk19_left_sidewith tray removed_0450.jpg decca_mk19_Top electrpmics tray _080505.jpg

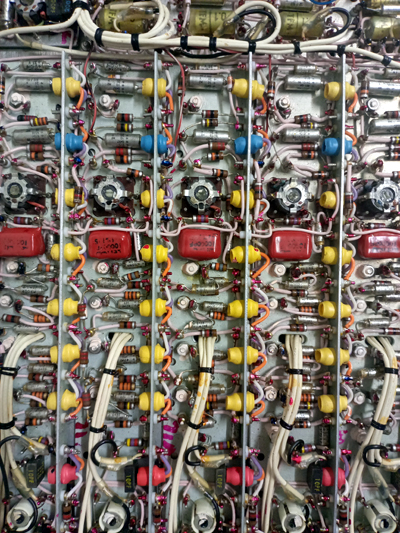

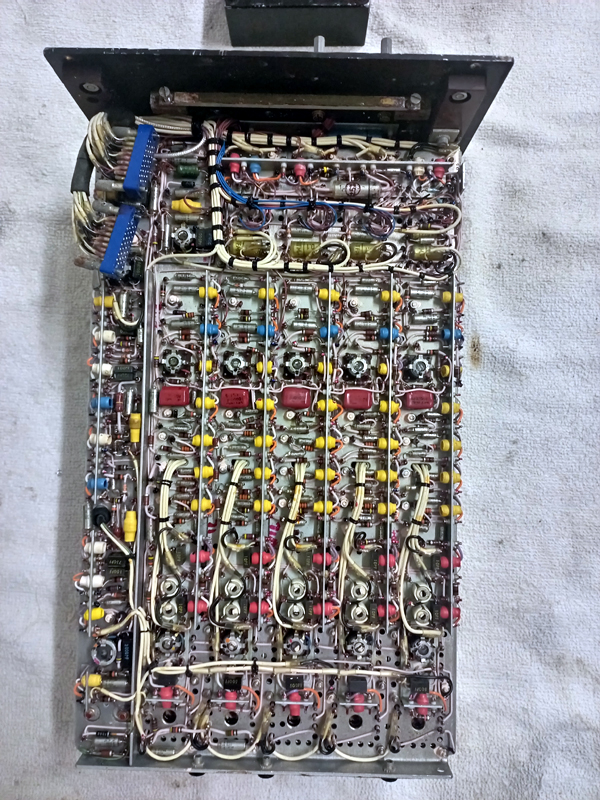

# 080450 - Left side view with middle and top tray removed. #080805 -Right side view closeup of top electronics tray.
Contributors and Credits:

1) Leon Heinkelein <leon.heinkelein(at)gmail.com>
